PV-15T11C产品说明书

PV-15T11C产品说明书
PV-15T11C Product Manual

感谢您选用浙江弗沙朗能源股份有限公司生产的太阳能光伏接线盒产品。为使您能正确、快速、安全地使用该产品，使用前请您详细阅读本说明书。
Thank you for your choose our solar PV junction box. To enable you can use of this product correct, fast and safe, please read this manual before using.

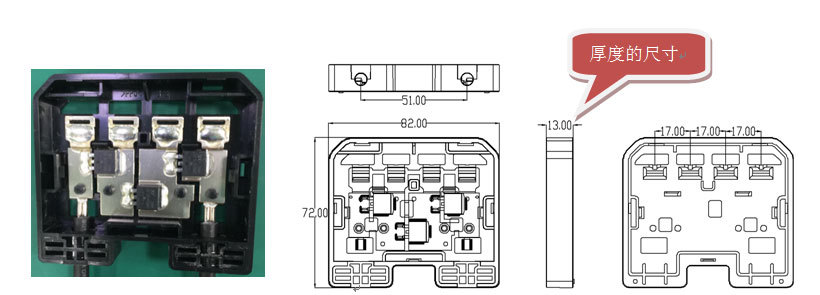

一、产品结构及尺寸：
Product structure and size

二、技术参数：
Technical parameters
适用的组件功率Suit for: 200~400W
　 最大工作电压maximum working voltage: 100V
额定冲击电压Rated impulse voltage: 12000/16000V DC
额定电压Rated Voltage: 1500V
接触电阻contact resistance: ≤0.5mΩ　
额定电流Rated Current: 15A　
反向电流reverse current: 30A 　
安全等级Safety Class: Class II 　
线缆范围Wire Size Range: 4mm2　
温度范围Ambient Temperature Range: -40℃～+85℃　
防护等级Protection Degree: IP68　
阻燃等级Flame Resistance: UL94-V0　
三、安装注意事项：　
Install Caution　
1．在正式安装接线盒时，首先应确认该电池组件不在工作状态。如果一定要在阳光照射下安装，请　
采用安全可靠的遮阳罩遮住电池组件，以免其产生电流，引起电击。人体不能同时接触连接器系统的　
正负极，以免发生触电；　
In the formal installation, you should confirm the solar module is not in working condition. If must be installed under the sunlight, please use the sun shade cover the solar module, in order to avoid its working, cause electric shock. Worker cannot contact the positive pole and negative pole at the same time, so as to avoid electric shock　
2．使用前接线盒盖是松开的，接线完毕后确保将接线盒盖好封严；　
The junction box cover is open before using, the connection after the junction box to ensure that good sealing　
3．接线端子的正负极、电缆的正负极是明确规定的，用户不要自行调换极性或反接，这样可能会造　
成严重的后果；　
The positive pole and negative pole for terminal and the cable is clearly defined, and the user should not change or make them reverse, which may cause serious consequences.　
4．如果要进行系统维护，请务必使系统处于停止工作状态后再进行；　
For system maintenance, please make sure that the system is stopped working;　
5. 请勿对接线盒、连接器、电缆施加外力或重压, 对电缆线的拉力＜400N；　
Do not force or the weight of junction box, connector and cable, the cable tension is less than 400N;　
6．推荐使用脱醇和脱丙酮型硅胶；如果使用脱肟型硅胶，在生产储存过程中，必须使硅胶中的2-丁酮肟完全挥发出去，否则可能导致塑件部件开裂，金属件被腐蚀等不良现象。　
Recommend the use of de ethanol and acetone silica removal; if the use of oxime type silica removal, in the process of production and storage must be completely evaporate silica gel of 2-butanone oxime, otherwise it may cause plastic parts cracking and metal parts are corrosion and other undesirable phenomena.　
四、安装及使用方法　

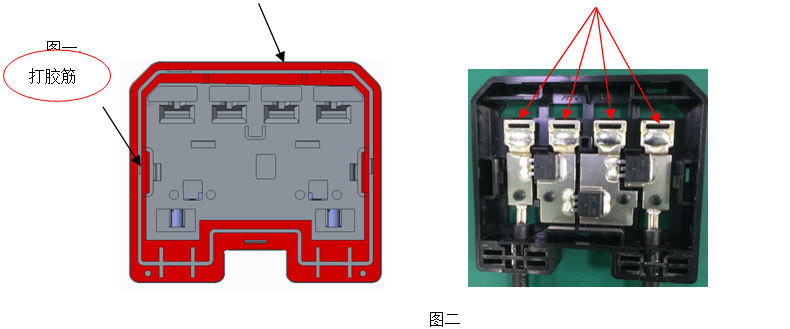

Installation and usage 红色为硅胶涂抹区连接板穿线孔

　
接线盒内部灌胶约30ML 上盖盖入顺序　

1. 如所示红色区域为硅胶涂抹区，涂抹方式为沿打胶筋涂入硅胶，待沿打胶筋旋转一圈后将底盒压入背板上。 2. 汇流条从底盒底部从下望上穿入连接板穿线孔，再用电烙铁把汇流条焊住。　
3. 如图三所示灌胶顺序灌入密封胶，注意胶面与水平面水平，实际灌胶量约30ML　
4. 灌胶后需要将底盒放置于阴凉处等待胶液凝固，待凝固后方可盖上上盖。上盖盖入顺序为1-2-3.即　
先扣入底盒顶端（1）处两个卡扣，再扣入底盒下端（2）处一个卡扣，再扣入左右（3）处两个卡扣。　
1 as shown in the red area is the silica gel coating area, the way is to apply the adhesive tape along the gel, to be the bottom of the box to be pressed into the back of the box.　
2 bus from the bottom of the bottom of the box from looking down on the threading hole passes through the connection plate, and the handle of the electric iron bars soldered.　
3 in Figure three shows that the filling in the order of the glue, the glue surface and the level of the level, the actual amount of plastic 30ML　
4 after the need to fill the bottom of the box is placed in a cool place to wait for the glue to solidify, to be solidified before the cover can be covered. The upper cover is in the order of 1-2-3. is　
The top (1) of the bottom box is deducted, and then the bottom (2) of the bottom of the box is a snap, and then buckle into the left and right (3).
